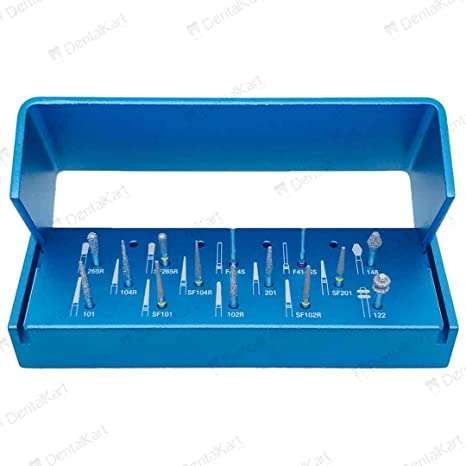

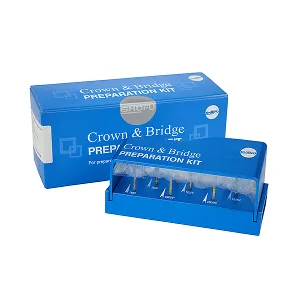

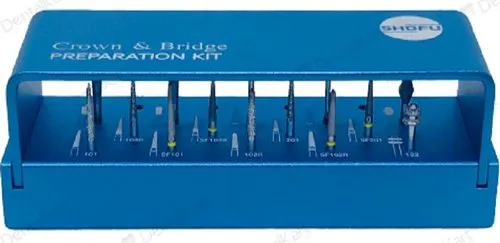

Shofu Crown & Bridge Preparation Kit

Description

Features:

1. Precise depth orientation grooves can be achieved easily with the specially designed depth cutting diamond points.
2. 2 special ‘Tissue-Protective End-Cutting Burs’ for shoulder preparation and finishing under gingival margins without injuring soft tissue.
3. These points are hygienically organized in an aluminium bur block (autoclavable) for convenient sterilization and easy replacement.
4. 14 kinds of specially selected FG Diamond Points in 3 different grits:
   – Regular (No marking on shank)
   – Fine (Red band on shank)
   – SuperFine (Yellow band on shank)

Direction to Use:

–

Key Specifications:

TECHNICAL SPECIFICATIONS:
TAPERED FLAT ENDED DIAMOND POINTS:
• Regular Grit: #201, #101
• SuperFine Grit: #SF210, SF101

TAPERED ROUND ENDED DIAMOND POINTS:
• Regular Grit: #102R
• SuperFine Grit: #SF102R

TAPERED ELLIPSE:
• Regular Grit: #104R
• SuperFine Grit: #SF104R

TISSUE PROTECTIVE END-CUTTING:
• Fine Grit: #F414SS, F414S

ROUND INVERTED CONE:
• Regular Grit: #265R, #SF265R

DOUBLE CONE:
• Regular Grit: #148

DEPTH CUTTING DIAMOND POINTS:
• Regular Grit: #122

Maximum recommended speed for the burs:
• Less than 450,000 rpm: 201, SF201
• Less than 300,000 rpm: 101, 102R, 104R, 265R, F102R, F414SS, F414S, SF101, SF104R, SF265R
• Less than 160,000 rpm: 148
• Less than 120,000 rpm: 122

Packaging:

Kit of 14 burs
Diamond Points FG x 14 in 3 different grits (Regular, Fine, and Superfine)
• Regular grit: 201, 101, 102R, 104R, 265R, 148, 122
• Fine grit: F102R, F414SS, F414S
• Superfine grit: SF201, SF101, SF104R, SF265R
